LEG/ELEMENT FENDERS

LION LEG/ELEMENT FENDERS (LMV & LMV-V)

Features

  • Good wear resistance
  • Easy installation and low maintenance
  • Layout Flexibility
  • High performance

Applications

  • Bridge Pier protection
  • Offshore platforms
  • Cargo Quays
  • Pontoons

Lion Element Fenders are molded rubber legs embedded with mounting plates. It can be installed vertically and horizontally. These fenders are also called as Leg fenders.

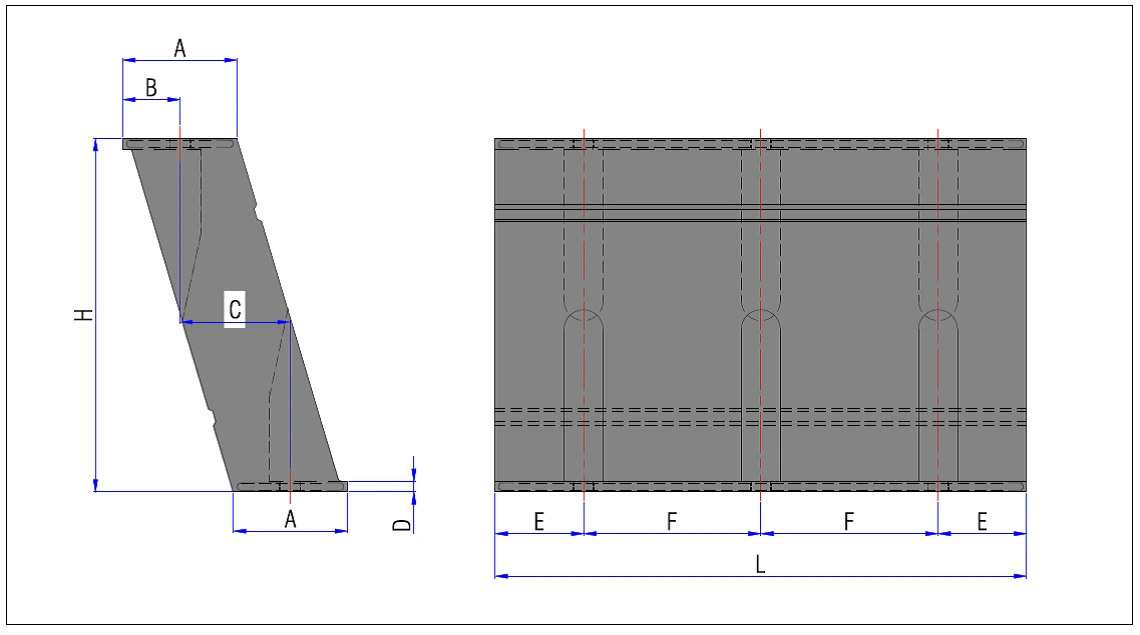

LION LEG/ELEMENT FENDER (LMV)

Type L H A B C D E F Anchor
LMV300 600 300 94 47 93 20-25 150 300 M20
900
1200
1500
LMV400 750 400 125 63 124 20-25 125 500 M24
1000 250
1500
2000
2500
3000
LMV500 750 500 158 87 142 20-25 125 500 M30
1000 250
1500
2000
2500
3000
LMV550 750 550 172 87 170 20-30 125 500 M30
1000 250
1500
LMV600 750 600 188 87 199 20-30 125 500 M30
1000 250
1500
LMV750 750 750 235 118 230 20-30 125 500 M36
1000 250
1500
LMV800 800 800 250 129 240 20-30 150 500 M36
1000 250
1500
2000
LMV1000 800 1000 322 162 310 30-40 150 500 M42
850 175
900 200
950 225
1000 250
1050 275
1100 300
1150 325
1200 350
1500 250
2000
LMV1250 800 1250 401 202 388 35-45 150 500 M48
850 175
900 200
950 225
1000 250
1050 275
1100 300
1150 325
1200 350
1250 375
1500 250
2000
MV 1450 900 1450 454 228 445 35-50 200 500 M48
1000 250
1100 300
1200 350
1500 250
2000
MV1600 1000 1600 507 261 480 45-50 250 500 M56
1100 300
1200 350
1500 250
2000

LION LEG/ELEMENT FENDER (LMV-V)

TYPE H A B C W W1 D   ANCHOR
LMV-V 300 300 454 360 172 270 410 70 M20
LMV-V 400 400 606 480 232 360 500 80 M24
LMV-V 500 500 774 600 316 460 660 90 M30
LMV-V 550 550 834 660 320 500 750 90 M30
LMV-V 600 600 894 720 322 530 800 90 M30
LMV-V 750 750 1136 900 440 680 1010 100 M36
LMV-V 800 800 1218 960 480 730 1170 100 M36
LMV-V 1000 1000 1524 1200 580 900 1330 120 M42
LMV-V 1250 1250 1904 1500 724 1140 1660 120 M48
  • All above dimensions are in mm. Above data is for reference purpose only.
  • Any customized Project & Product requirements can be catered by Lion Rubber’s Design & Development Team.
  • All grade Fender performance are available on request.

Durable Element Fenders for Superior Marine Protection

Lion Rubber’s element fender systems are designed to protect vessels and port structures in tough marine conditions. Their modular build makes them ideal for flat and curved surfaces, offering installation flexibility without compromising performance.
Made from strong marine-grade rubber, each element fender absorbs heavy impact and withstands saltwater, UV rays, and extreme weather. They’re perfect for high-traffic ports and terminals where durability is a must.
With decades of expertise, Lion Rubber supplies custom-engineered fender solutions to clients worldwide. We prioritize quality, dependability, and fast shipping, establishing ourselves as a trusted leader in marine protection.

What is an Element Fender?

An element fender is a modular rubber system that protects vessels and port structures during berthing. It consists of individual rubber legs or units that can be installed vertically or horizontally, making it suitable for flat and curved surfaces.
This flexibility makes element fenders ideal for terminals, quay walls, and docking areas where vessels frequently berth. They are often paired with UHMW-PE facing panels for low friction and high energy absorption.
Unlike other fender types, element fenders are compact, easy to install, and provide excellent impact resistance with minimal maintenance. Their modular structure allows quick part replacement, making them cost-effective and reliable in demanding marine environments.

Key Features of Lion Rubber’s Element Fenders

Lion Rubber’s element fenders are known for their strength, flexibility, and performance. Built for busy ports and berthing structures, these fenders offer lasting protection with easy upkeep.
  • Good Wear Resistance

    Made from high-quality marine-grade rubber, each element fender can handle repeated impact and rough conditions. It stands up to wear, saltwater, and UV rays, making it a good option for long-lasting use.

  • Easy Installation and Low Maintenance

    The modular design allows for simple and quick installation. If one unit wears out, it can be replaced without removing the entire system, saving time and reducing maintenance costs.

  • Layout Flexibility

    Element fenders can be installed in horizontal, vertical, or angled layouts to match different structures. This adaptability makes them suitable for complex berthing areas and customized dock setups.

  • High Performance

    These fenders absorb energy well and create less force, reducing stress on both the vessel and the dock. They work reliably in both calm and tough conditions.

Lion Rubber Element Fenders: Technical Specifications

Lion Rubber offers a wide range of element fenders designed to fit various marine applications. To match your berth requirements, these fenders come in different sizes and profiles, including popular types like E-Element and V-Element.

Material options include durable Natural Rubber, EPDM, and Neoprene, each chosen for excellent resistance to harsh marine environments. Our element fenders deliver reliable load-bearing capacity and optimal compression rates, ensuring superior impact absorption and protection.
For detailed dimensions, load ratings, and installation guidelines, download our comprehensive data sheet and CAD drawings, which are available on the website.

Applications of Lion Rubber Element Fenders

Lion Rubber’s element fenders are designed to protect many marine structures from impact damage. Their durable build and modular design allow them to be ideal for a wide range of important applications.
  • Bridge Pier Protection:

    Our element fenders help absorb impacts from vessels and floating debris, protecting bridge piers from costly damage and ensuring the safety and stability of these important structures.

  • Offshore Platforms:

    These fenders provide effective cushioning for boats and supply vessels docking at offshore platforms. They reduce the risk of structural harm caused by harsh sea conditions and frequent contact.

  • Cargo Quays:

    At busy cargo quays, element fenders safeguard quay walls by absorbing the force of large ships during loading and unloading. This prevents damage and maintains smooth port operations.

  • Pontoons:

    Designed for flexibility and durability, element fenders protect pontoons and floating docks by offering reliable impact resistance and helping boats berth safely in marinas and harbors.

What Makes Lion Rubber Element Fenders Stand Out?

Choosing the right element fender means trusting a product that delivers beyond basic protection. Here’s why Lion Rubber’s fenders are the preferred choice for marine professionals worldwide:
  • Advanced Rubber Compounds

    We use specially formulated rubber blends that improve wear resistance and extend service life even in the harshest marine environments.

  • Precision Engineering

    Each element fender is crafted with tight manufacturing tolerances, ensuring consistent quality and easy fit during installation.

  • Corrosion-Resistant Hardware

    Our fenders come with robust, rust-proof fittings that guarantee long-term durability in saltwater conditions.

  • Flexible Modular Design

    The modular system allows quick repairs and upgrades, minimizing downtime and cutting maintenance costs.

  • Strong Customer Support

    Lion Rubber offers expert guidance and after-sales service to help you select, install, and maintain the right fender for your needs.

Frequently Asked Questions of Element Fenders

With proper installation and maintenance, element fenders made from high-quality rubber materials can last many years, resisting wear from saltwater, weather, and constant impacts.
Yes, the modular design of element fenders allows for straightforward installation and simple replacement of damaged sections, which reduces downtime and maintenance costs.
Our element fenders use marine-grade materials like natural rubber, EPDM, and Neoprene, which are chosen for their flexibility, durability, and resistance to harsh sea conditions.
Yes, our element fenders’ scalable modular system allows them to protect a wide range of vessels, from small workboats to large cargo ships.
Because of their modular design, element fenders offer greater flexibility. Unlike traditional fenders, they can be easily configured for curved or flat surfaces, making them ideal for varied berth shapes and sizes.

Ready to Protect Your Marine Assets with Lion Rubber Element Fenders?

Get durable, high-performance element fenders designed for lasting protection and easy maintenance. Contact us today for a custom solution that perfectly fits your vessel or port requirements.
