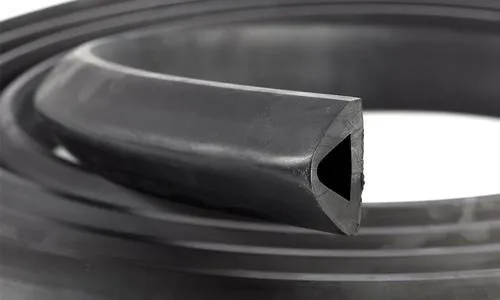

Lion Delta Fender is an effective rubber profile witch applied in both marine as well as industrial markets and they can be used for various applications, this type of fender has a minimal contact surface and they are easy to install on vessel as well as structure. A Delta fender has the capacity to absorb high levels of energy through the presence of a relatively large hollow section.
| Product Reference |
Fender Size mm | Bore Size mm | ||
| Base ( B ) | Height ( H ) | Base ( b ) | Height ( h ) | |
| Lion-Delta 40 | 40 | 22 | 20 | 12 |
| Lion-Delta 60 | 60 | 52 | 30 | 30 |
| Lion-Delta 80 | 80 | 70 | 40 | 40 |
| Lion-Delta 110 | 110 | 95 | 55 | 55 |
| Lion-Delta 150 | 150 | 130 | 75 | 75 |
| Product Reference |
Fender Size mm | Bore Size mm | ||
| Base ( B ) | Height ( H ) | Base ( b ) | Height ( h ) | |
| LRI-DH 24 | 24 | 16 | 16 | 10 |
| LRI-DH 32 | 32 | 24 | 24 | 11 |
| LRI-DH 48 | 48 | 32 | 29 | 16 |
| LRI-DH 64 | 64 | 41 | 38 | 19 |
| LRI-DH 70 | 70 | 60 | 42 | 40 |
| LRI-DH 80 | 80 | 65 | 42 | 40 |
| LRI-DH 114 | 114 | 95 | 57 | 51 |
