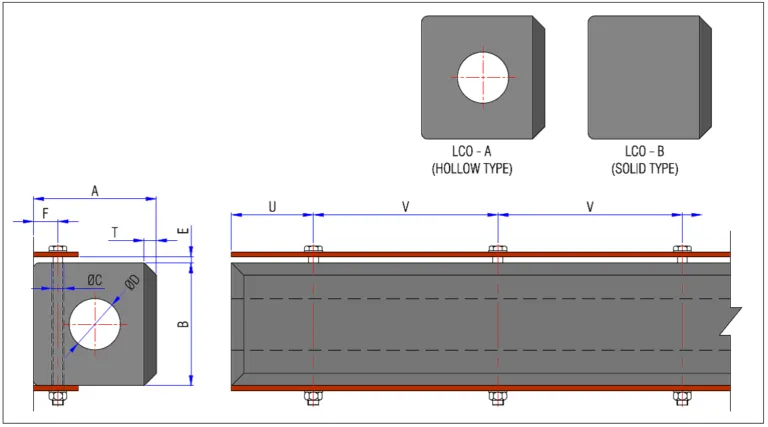

Lion Composite fenders are made of a rubber profile with wear resistant UHMW-PE front facing plate. Lion composite Fenders comes in four variants as below.
| Type | A | B | øC | øD | E | F | T | U | V | FLAT BAR | BOLT |
| LCO 100 | 100 | 100 | 15 | 30 | 10 | 25 | 20 | 90-130 | 200-300 | 50 X 6 | M12 |
| LCO 150 | 150 | 150 | 20 | 65 | 12 | 30 | 20 | 110-150 | 250-350 | 60 X 8 | M16 |
| LCO 165 | 165 | 165 | 20 | 65 | 15 | 35 | 20 | 110-150 | 250-350 | 60 X 8 | M16 |
| LCO 200 | 200 | 200 | 25 | 100 | 20 | 45 | 25 | 130-180 | 300-400 | 80 X 10 | M20 |
| LCO 250 | 250 | 250 | 30 | 100 | 25 | 50 | 30 | 140-200 | 350-450 | 100 X 10 | M24 |
| LCO 300 | 300 | 300 | 30 | 125 | 30 | 60 | 30 | 140-200 | 350-450 | 110 X 12 | M24 |
| Type | A | B | b | a | d | øC | øD | E | F | T | U | V | FLAT BAR | BOLT |
| LCO 80 | 80 | 80 | 60 | 40 | 44 | 15 | 42 | 6 | 25 | 10 | 90-130 | 200-300 | 45 X 6 | M12 |
| LCO 100 | 100 | 100 | 74 | 50 | 56 | 15 | 45 | 8 | 25 | 10 | 90-130 | 200-300 | 45 X 8 | M16 |
| LCO 120 | 120 | 120 | 88 | 60 | 67 | 20 | 62 | 10 | 30 | 12 | 110-150 | 250-350 | 60 X 8 | M16 |
| LCO 150 | 150 | 150 | 110 | 75 | 83 | 20 | 73 | 12 | 30 | 15 | 130-180 | 250-350 | 60 X 8 | M16 |
