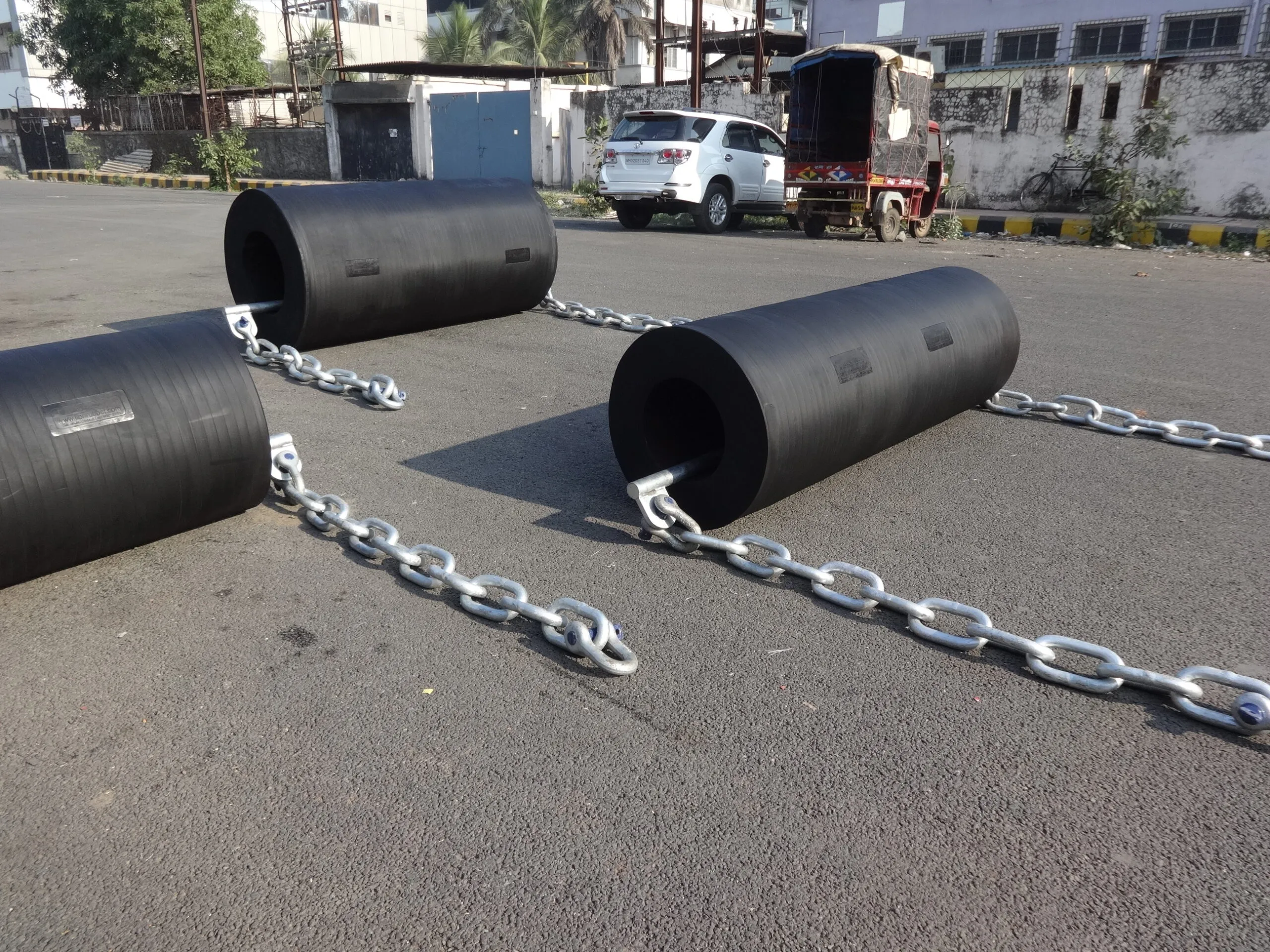

CYLINDRICAL FENDERS

LION CYLINDRICAL FENDERS (LCY)

Features

  • Good abrasion resistance
  • Easy to install
  • Low maintenance
  • Simple Fender type

Applications

  • Offshore platforms
  • Bulk cargo berth
  • Fishing boat berth

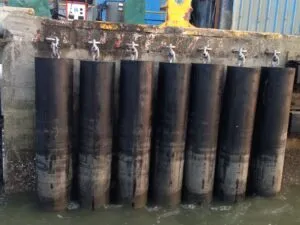

Lion Cylindrical fenders offer simplicity in installation and offers the most economical solution to many Fendering problems. They are versatile and can be mounted horizontally, vertically and diagonally. They are ideal for wharves, jetties, Bow and stern for harbour tug boats.

TYPE OD ID ENERGY REACTION
LCY 100 100 50 0.8 43
LCY 125 125 65 1.3 51
LCY 150 150 75 1.8 65
LCY 175 175 75 2.7 92
LCY 200 200 100 3.3 86
LCY 250 250 125 5.1 108
LCY 300 300 150 7.4 129
LCY 380 380 190 11.8 164
LCY 400 400 200 13.1 172
LCY 450 450 225 16.6 194
LCY 500 500 250 28 275
LCY 600 600 300 40 330
LCY 800 800 400 72 440
LCY 1000 1000 500 112 550
LCY 1200 1200 600 162 660
LCY 1400 1400 700 220 770
LCY 1500 1500 750 253 825
LCY 1600 1600 800 288 880
LCY 1750 1750 900 340 929
LCY 2000 2000 1200 415 871
LCY 2400 2400 1200 647 1321
LCY 2700 2700 1300 818 1486
  • Energy – KN-Mtr
  • Reaction – KN
  • Performance per meter length
  • All above dimensions are in mm. Above data is for reference purpose only.
  • Any customized Project & Product requirements can be catered by Lion Rubber’s Design & Development Team.
  • All grade Fender performance are available on request.
