D FENDERS

LION DD FENDERS (LDD)

Features

  • Wide selection in various sizes and shapes
  • Easy for installation and replacement
  • Simple design

Applications

  • Marina Jetty
  • Offshore platforms
  • General Fendering

Lion D type fenders are one of the most common type of Fenders. These D type fenders display a higher energy absorption capacity, thus minimizing deface contact. Lion D type fenders are supplied with D hollow, Rounded hollow or Solid.

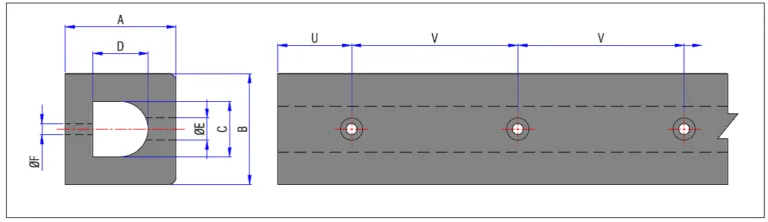

Type A B C D øE øF G H Flat bar Bolt size
LDD 80 70 80 45 30 30 15 90-130 200-300 35 x 5 M12
LDD 100 100 100 50 50 30 15 90-130 200-300 40 x 5 M12
LDD 125 125 125 60 60 40 20 110-150 250-300 50 x 6 M16
LDD 150 150 150 75 75 40 20 110-150 250-300 60 x 8 M16
LDD 200 200 200 100 100 50 25 130-180 300-400 80 x 10 M20
LDD 250 250 200 125 125 60 30 140-200 350-450 90 x 12 M24
LDD 300 300 300 150 150 60 30 140-200 350-450 110 x 12 M24
LDD 350 350 350 175 175 75 35 140-200 350-450 130 x 15 M30
LDD 380 380 380 190 190 75 35 140-200 350-450 140 x 15 M30
LDD 400 400 400 200 200 75 35 140-200 350-450 130 x 15 M30
LDD 500 500 500 250 250 90 45 160-230 400-500 180 x 20 M36
  • All above dimensions are in mm. Above data is for reference purpose only.
  • Any customized Project & Product requirements can be catered by Lion Rubber’s Design & Development Team.
  • All grade Fender performance are available on request.
