Marina fenders is an effective rubber profile witch applied in both marine as well as industrial markets and they can be used for various applications, this type of fender has a minimal contact surface and they are easy to install on vessel as well as structure. A Delta fender has the capacity to absorb high levels of energy through the presence of a relatively large hollow section

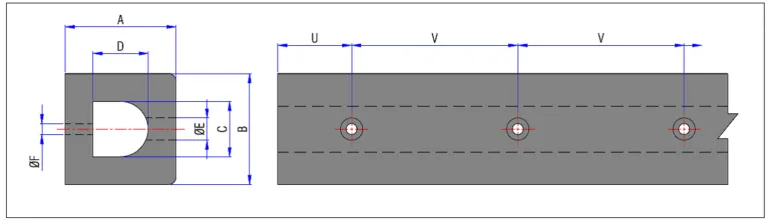

| Type | A | B | C | D | øE | øF | G | H | Flat bar | Bolt size |
| LDD 100 | 100 | 100 | 50 | 50 | 30 | 15 | 90-130 | 200-300 | 40 x 5 | M12 |
| LDD 125 | 125 | 125 | 60 | 60 | 40 | 20 | 110-150 | 250-300 | 50 x 6 | M16 |
| LDD 150 | 150 | 150 | 75 | 75 | 40 | 20 | 110-150 | 250-300 | 60 x 8 | M16 |
| LDD 200 | 200 | 200 | 100 | 100 | 50 | 25 | 130-180 | 300-400 | 80 x 10 | M20 |
| LDD 250 | 250 | 200 | 125 | 125 | 60 | 30 | 140-200 | 350-450 | 90 x 12 | M24 |
| LDD 300 | 300 | 300 | 150 | 150 | 60 | 30 | 140-200 | 350-450 | 110 x 12 | M24 |
| Product Reference |
Fender Size mm | Bore Size mm | ||
| Base | Height | Base | Height | |
| Lion-Delta 40 | 40 | 22 | 20 | 12 |
| Lion-Delta 60 | 60 | 52 | 30 | 30 |
| Lion-Delta 80 | 80 | 70 | 40 | 40 |
| Lion-Delta 110 | 110 | 95 | 55 | 55 |
| Lion-Delta 150 | 150 | 130 | 75 | 75 |
| Type | øD | ød | P | Q (max) | S | øU | øV |
| LTCY 250 | 250 | 125 | 200 | 570 | 500 | 190 | 75 |
| LTCY 300 | 300 | 150 | 225 | 600 | 700 | 225 | 75 |
| LTCY 380 | 380 | 190 | 280 | 650 | 800 | 280 | 100 |
| LTCY 400 | 400 | 200 | 300 | 670 | 800 | 300 | 100 |
| LTCY 450 | 450 | 225 | 300 | 700 | 850 | 350 | 100 |
| LTCY 500 | 500 | 250 | 300 | 730 | 900 | 375 | 100 |
| LTCY 600 | 600 | 300 | 350 | 800 | 900 | 450 | 125 |
| LTCY 800 | 800 | 400 | 350 | 930 | 1000 | 600 | 125 |
| LTCY 900 | 900 | 450 | 350 | 1000 | 1100 | 675 | 150 |
| LTCY 1000 | 1000 | 500 | 350 | 1060 | 1200 | 750 | 150 |
