DD & DO FENDERS

Enquire Now

LION DD FENDERS (LDD)

Previous
Next

Features

  • Wide selection in various sizes and shapes
  • Easy for installation and replacement
  • Simple design

Applications

  • Tugs & Boats
  • Vessels
  • Barges & Pilot boats

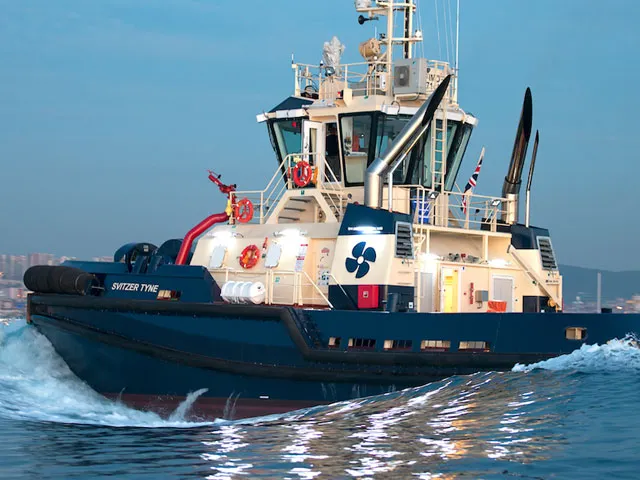

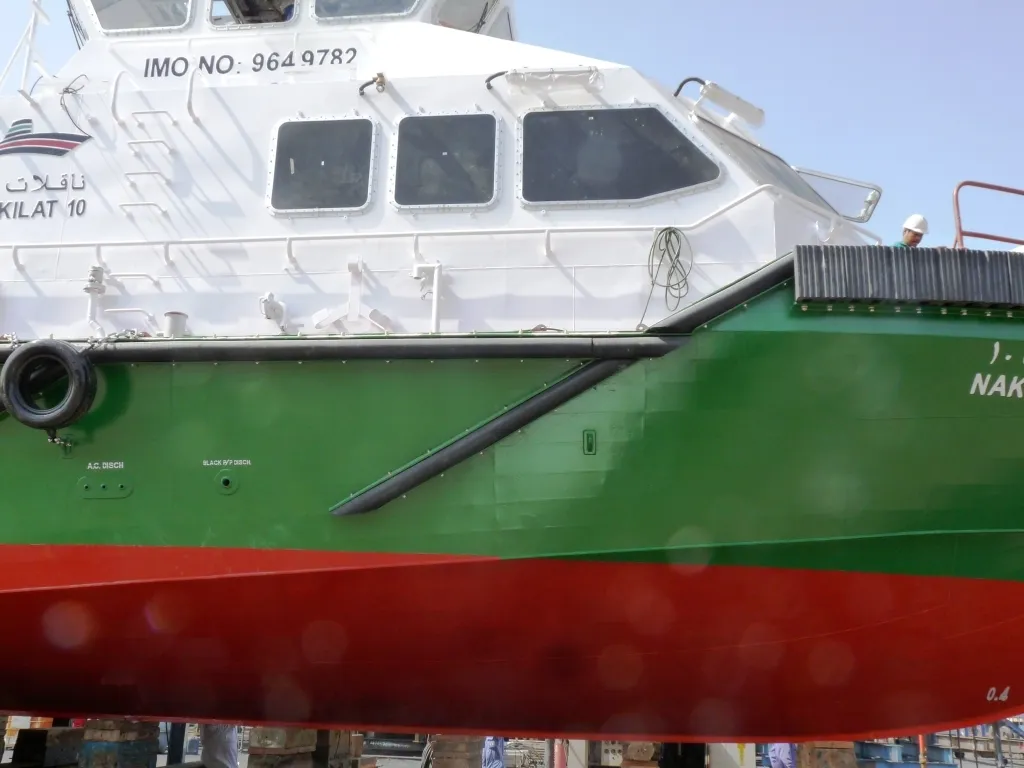

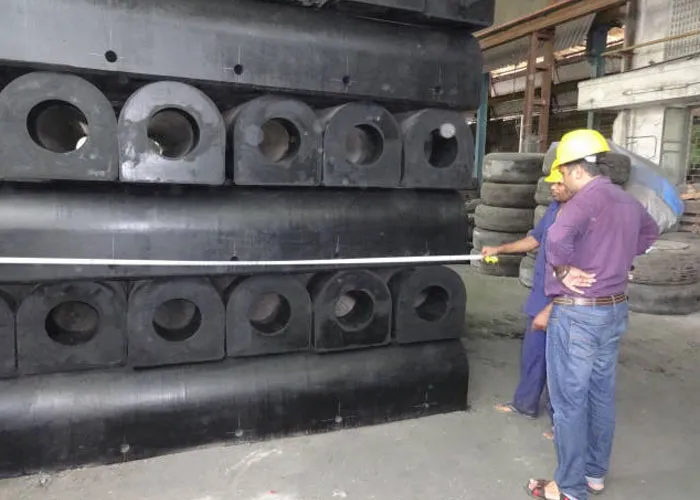

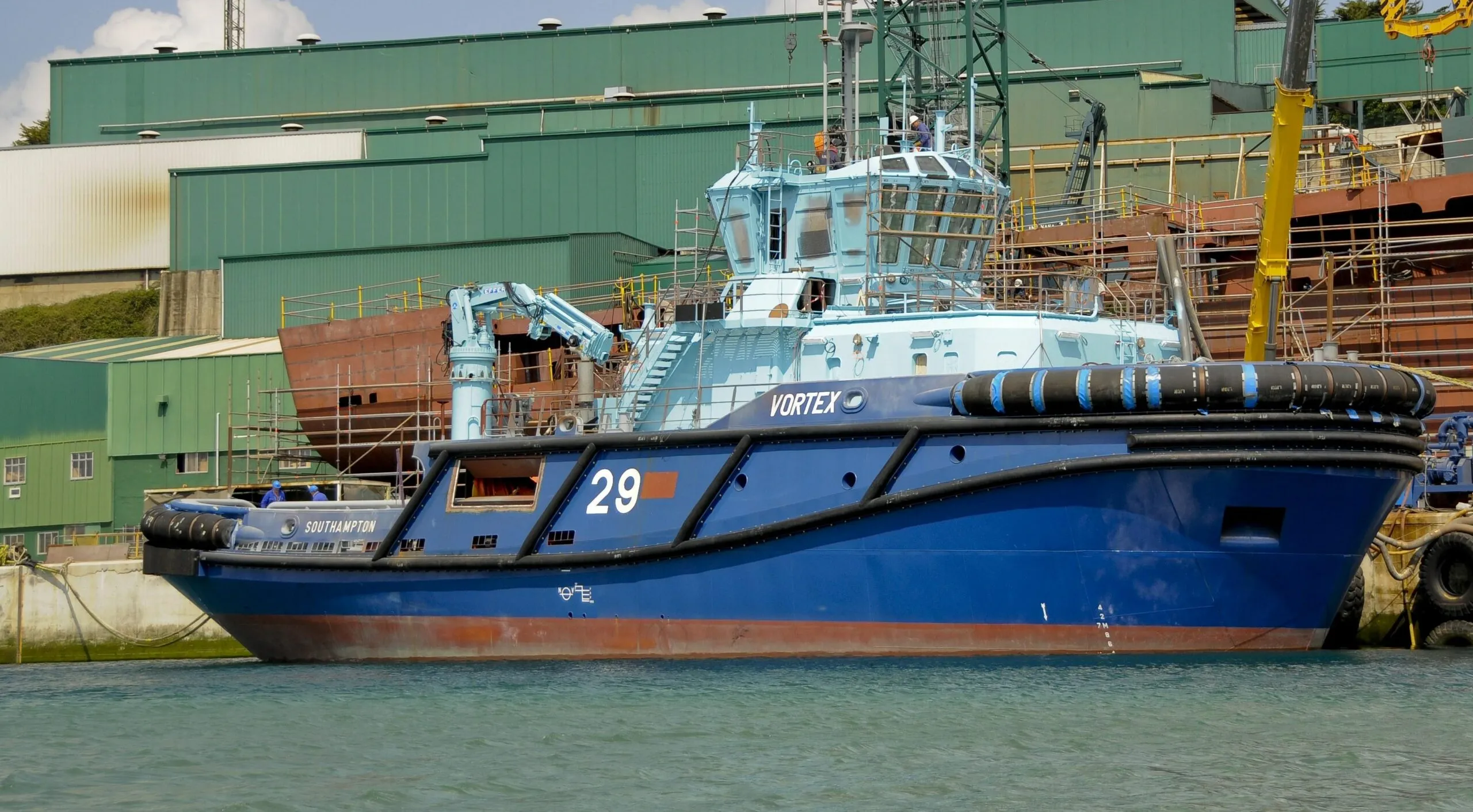

Lion D type fenders are used for tugs, barges, workboats and pilot boats as side belting and protective fenders against heavy rubbing, brushing forms. These D type fenders display a higher energy absorption capacity, thus minimizing deface contact. These fenders can also be mounted on quay are by means of anchor belts. Lion D type fenders are supplied with D hollow, Rounded hollow or Solid. Long length D fenders can be supplied to match the Aft or Bow radius.

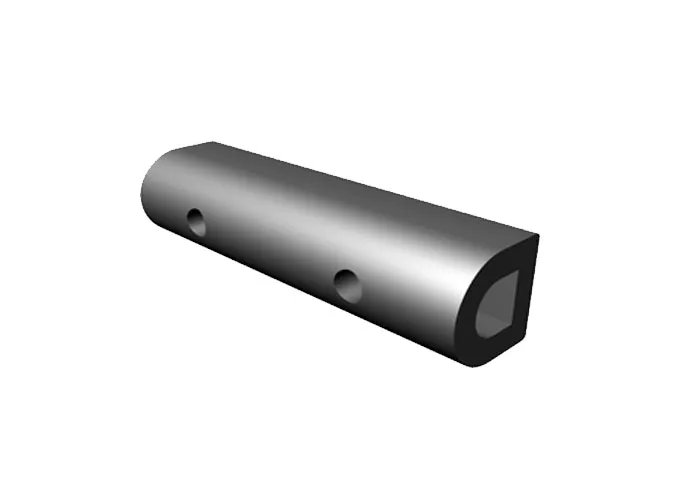

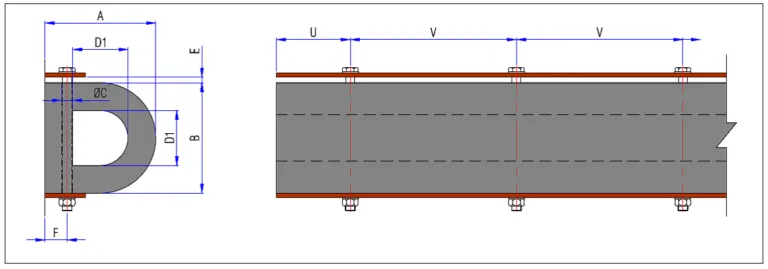

DD Fender - D with D-Hollow Fender

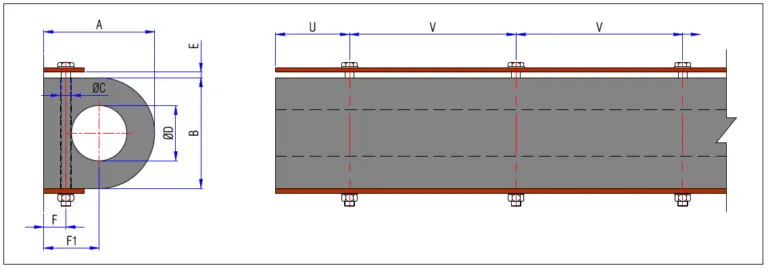

DO Fender - D with Round Hollow Fender

Type A B D1 øC E F U V Flat bar Bolt size
LDD 100 100 100 50 15 10 2590-130 200-300 50 x 6 M12
LDD 150 150 150 75 20 12 30110-150 250-350 60 x 8 M16
LDD 200 200 200 100 25 15 45 130-180 300-400 80 x 10 M20
LDD 250 250 250 125 30 20 50 140-200 350-450 100 x 10 M24
LDD 300 300 300 150 30 25 60 140-200 350-450 110 x 12 M24
LDD 350 350 350 175 35 25 70 140-200 350-450 120 x 12 M30
LDD 400 400 400 200 35 30 80 140-200 350-450 130 x 15 M30
LDD 500 500 500 250 35 30 100 140-200 350-450 130 x 15 M36
Type A B øC øD E F F1 U V Flat bar Bolt size
LDO 100 100 100 15 50 10 25 50 90-130 200-300 50 x 6 M12
LDO 150 150 150 20 75 12 30 75 110-150 250-350 60 x 8 M16
LDO 200 200 200 25 100 15 45 100 130-180300-40080 x 10M20
LDO 250 250 250 30 125 20 50 125 140-200 350-450 100 x 10 M24
LDO 300 300 300 30 150 25 60 150 140-200 350-450 110 x 12 M24
LDO 350 350 350 35 175 25 70 175 140-200 350-450 120 x 12 M30
LDO 400 400 400 35 200 30 80 200 140-200 350-450 130 x 15 M30
LDO 500 500 500 35 250 30 100 250 140-200 350-450 130 x 15 M36
  • All above dimensions are in mm. Above data is for reference purpose only.
  • Any customized Project & Product requirements can be catered by Lion Rubber’s Design & Development Team.
  • All grade Fender performance are available on request.
