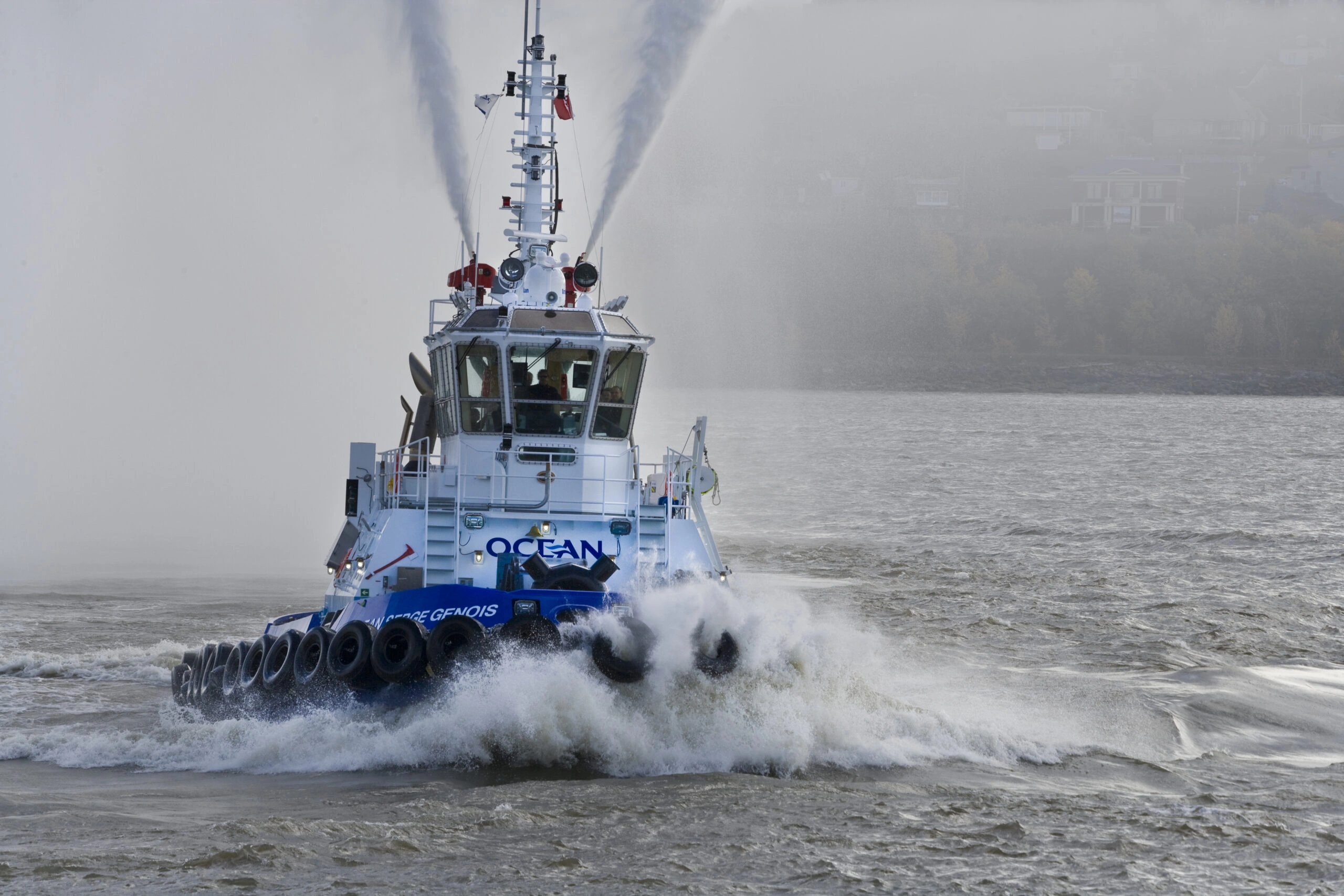

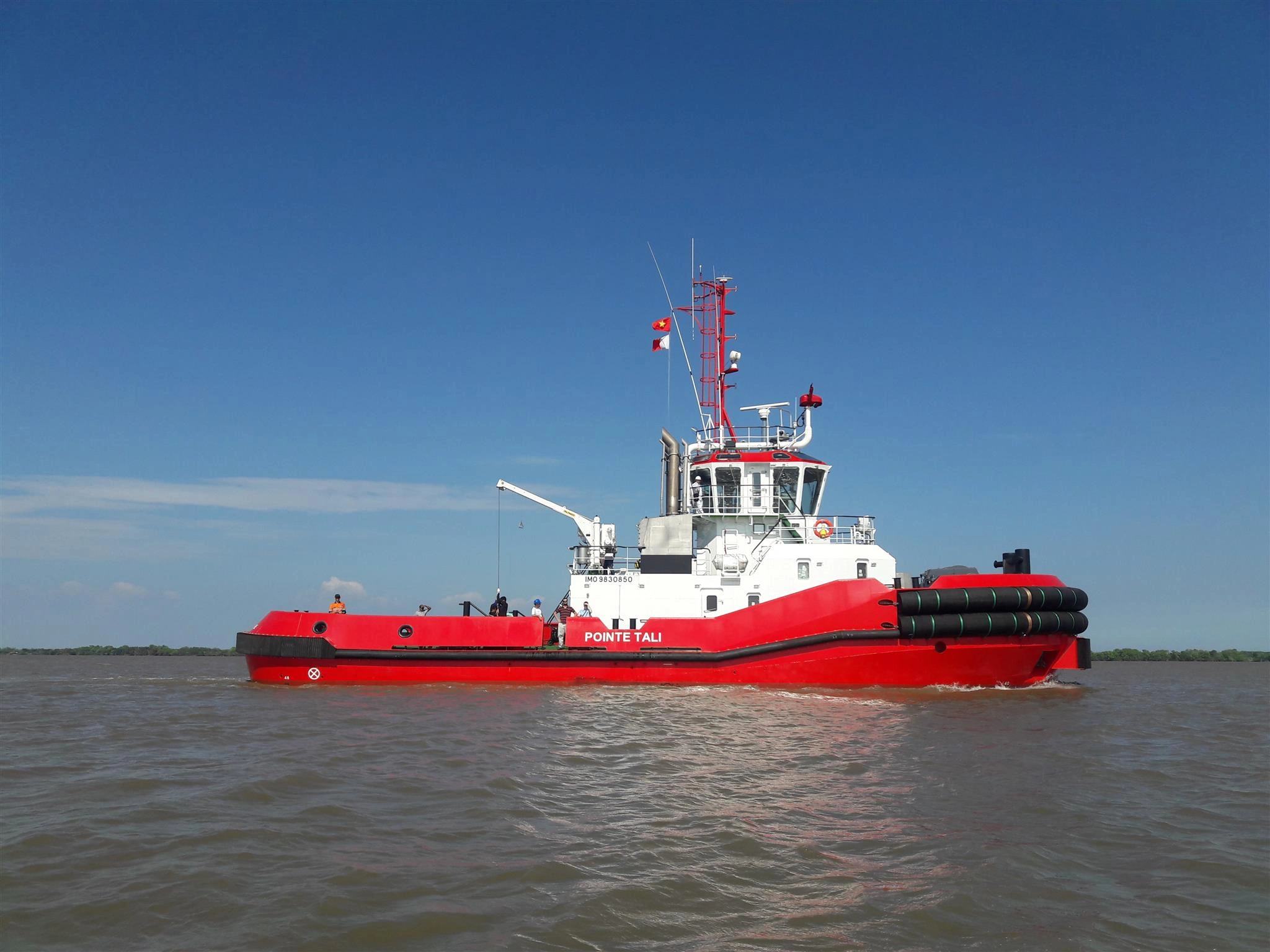

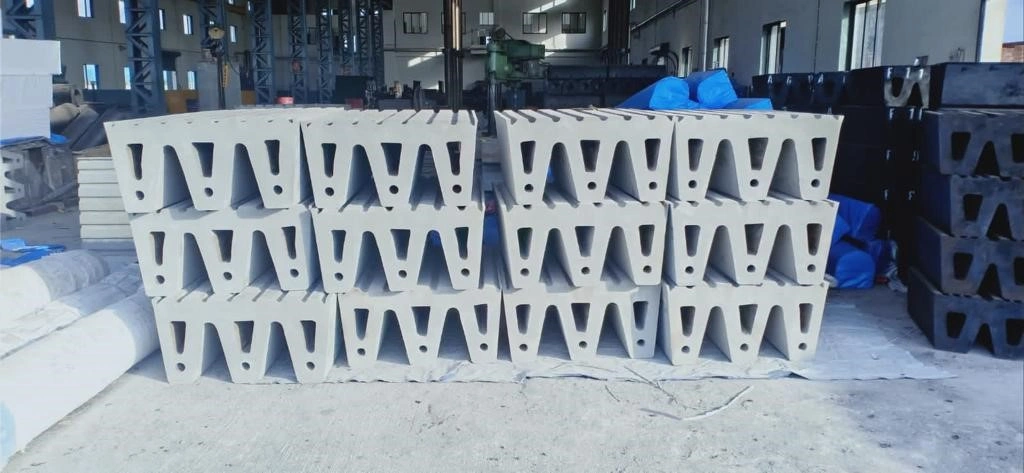

Lion M Type fenders are installed on to the bow and the aft portions of Ocean going tugs, to the hull of the vessel, against damages caused during pushing and pulling operations / towage. These fenders are installed in similar manner as those of key Hole Fenders.

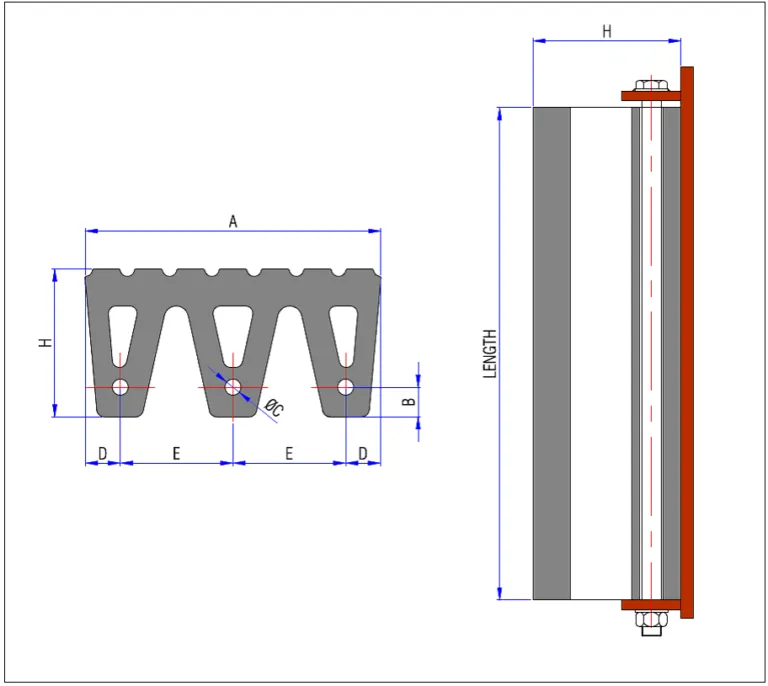

Type
H
A
B
øC
D
E
L max
FLAT BAR
PIN DIA.
R (min)
LM 200
200
400
40
23
50
150
2000
100 X 15
20
450
LM 250
250
500
50
27
60
190
2000
125 X 20
24
550
LM 300
300
600
60
33
70
230
2000
150 X 20
30
650
LM 400
400
800
80
44
95
305
2100
150 X 20
40
900
All above dimensions are in mm. Above data is for reference purpose only.
Any customized Project & Product requirements can be catered by Lion Rubber’s Design & Development Team.
All grade Fender performance are available on request.
