MARINE PROTECTION PLATES

Home » Products » Lion Tug & Boat Fenders » Marine Protection Plates

LION MARINE PROTECTION PLATES (LMPP)

Previous

Next

Features

Durable & Long lasting
Easy installation
Customized rubber surface
High abrasion resistance

Applications

Pontoons
Monopiles protection

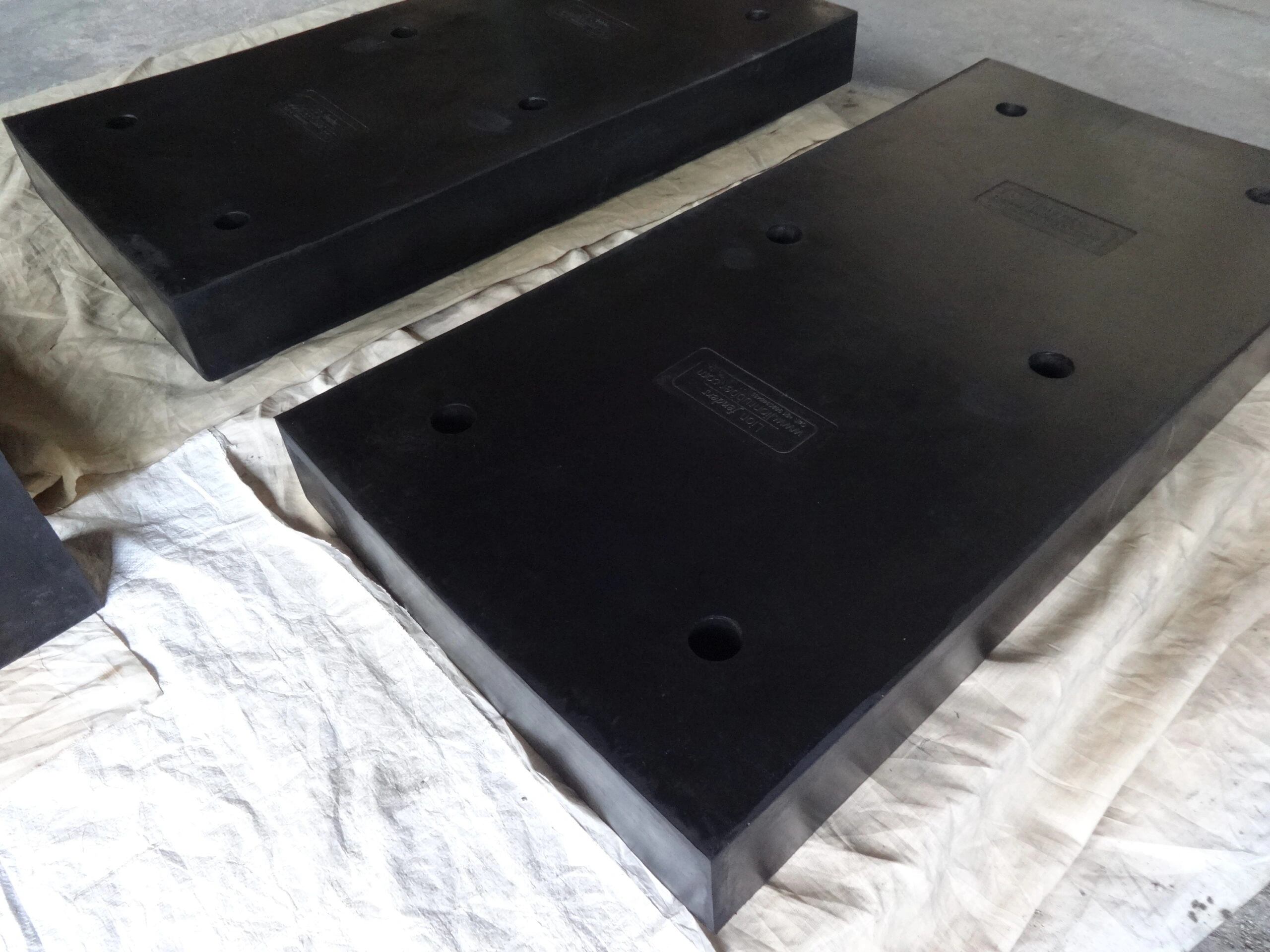

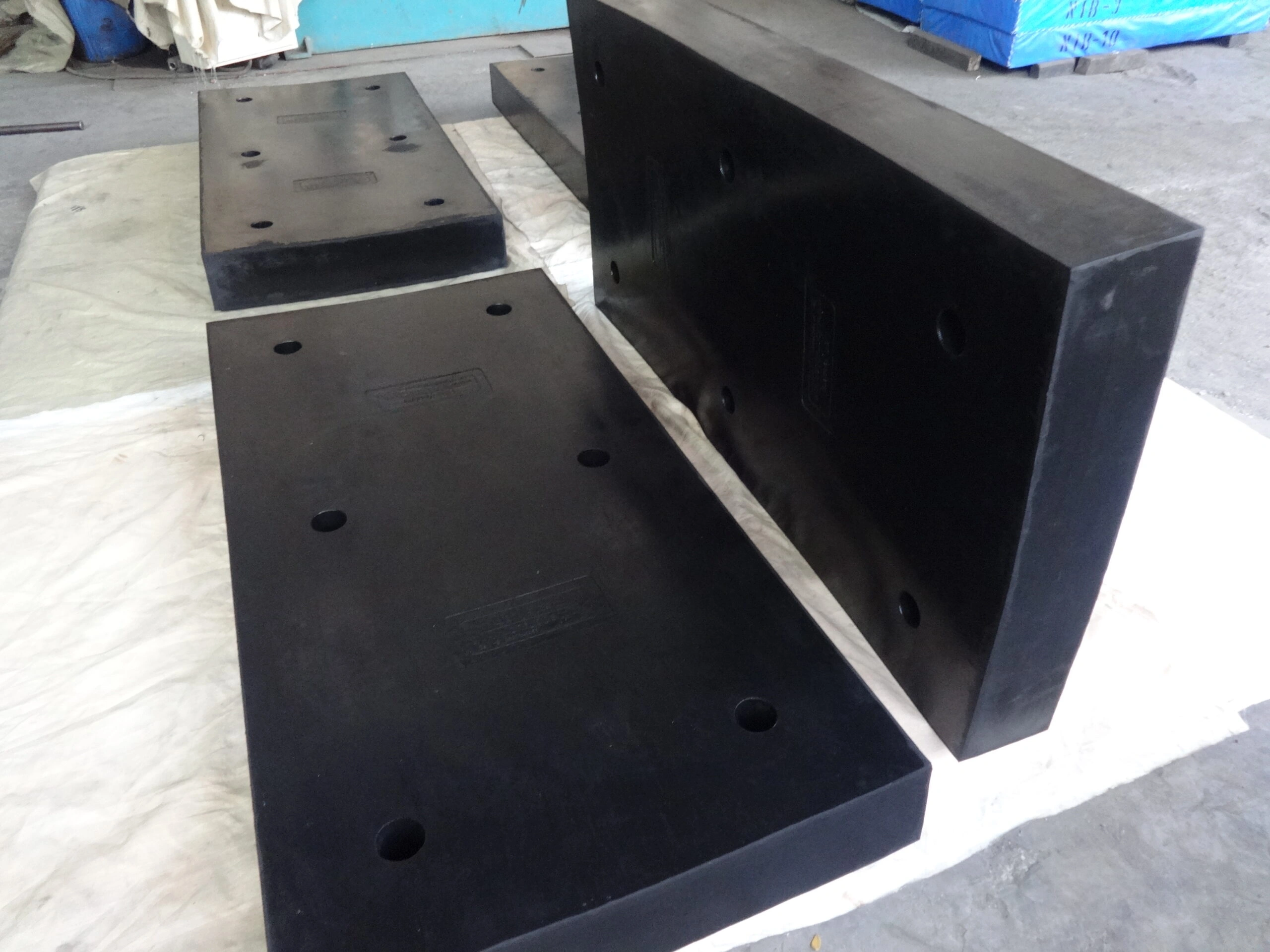

Lion Marine Protection Plates (LMPP) are used for protection of quays & small vessels. Lion’s MPPs come with flat or wave-patterned design.

Type	T	W	L	C	D	E	Anchors
LMPP 50-100	50	500	1000	100	300	800	4 × M20
		600		150	300	700
		750		150	450	700
LMPP 50-150	50	500	1500	100	300	650	6 × M20
		600		150
		750		100	450	600
LMPP 75-100	75	500	1000	100	300	800	4 × M20
		600		150		700
		750			450
LMPP 75-150	75	500	1500	100	300	650	6 × M20
		600		150		600
		750		100	450
LMPP 100-100	100	500	1000	100	300	800	4 × M20
		600		150		700
		750			450
LMPP 100-150	100	500	1500	100	300	650	6 × M20
		600		150		600
		750		100	450
LMPP 125-100	125	500	1000	100	300	800	4 × M20
		600		150		700
		750			450
LMPP 125-150	125	500	1500	100	300	650	6 × M20
		600		150		600
		750		100	450
LMPP 150-100	150	500	1000	100	300	800	4 × M20
		600		150		700
		750			450
LMPP 150-150	150	500	1500	100	300	650	6 × M20
		600		150		600
		750		100	450

All above dimensions are in mm. Above data is for reference purpose only.
Any customized Project & Product requirements can be catered by Lion Rubber’s Design & Development Team.
All grade Fender performance are available on request.
